Manufacturer: Naraku
Order number: NK600.75
4250362433437

Cylinder head Naraku 62mm Yamaha YI-3

Naraku

Almost gone

Order within the next 20 hours and 9 minutes so the order is shipped tomorrow .

€394.90 *

Prices incl. VAT plus shipping costs

Fits for:

MT 125, ab 2021, RE40 - Euro5

MT 125, 2020 bis 2020, RE39 - Euro4

MT 125, 2017 bis 2019, RE29 - Euro4

MT-125, 2014 bis 2016, RE11 - Euro3

WR 125 X/R, 2013 bis 2017, DE072 - Euro3

WR 125 X/R, 2009 bis 2013, DE071 - Euro3

YZF-R 125, ab 2021, RE40 - Euro5

YZF-R 125, 2019 bis 2020, RE39 - Euro4

YZF-R 125, 2017 bis 2018, RE29 - Euro4

YZF-R125, 2014 bis 2016, RE11 - Euro3

YZF-R125, 2008 bis 2013, RE06 - Euro3

XSR 125, ab 2021, RE44 - Euro5

RR 125 4T LC, ab 2021, ZD3EH143

RR 125 4T LC, 2017 bis 2020, ZD3E9143

RR 125 4T LC, 2013 bis 2016, ZD3E4000

Caballero 125, 2018 bis 2020

Caballero 125, ab 2021, Deluxe/Scrambler/Flat Track

Enduro / Motard 125, 2017 bis 2020

XME /XMF 125, ab 2021

Moto 125, 2010 bis 2017

SMR 125, 2011 bis 2013, A500AB

Marathon Pro LC 125, 2009 bis 2017, MRT

RS3 125, 2011 bis 2016

To get the absolute maximum power out of Yamaha's YI-3 engines, this 62mm Ø Naraku cylinder head is indispensable. More passage, reinforced valve springs and larger valves (21/23mm) let every cylinder with 62-64mm bore breathe properly. The use of another injection device like the Malossi Force Master II is absolutely mandatory!

Note for use with Yamaha MT and YZF models from 2014 onwards

The cylinder head has no possibility to mount the Lambda sensor. In any case, this results in a fault in the control unit. Unfortunately, a solution to the problem involves considerable effort: We recommend drilling a hole in the exhaust manifold and welding on a nut to fix the Lambda sensor directly in the manifold. Please note that the sensor must be mounted as close as possible to the cylinder head!

Technical data

combustion chamber: 62mm
Inlet valves: 23mm
Exhaust valves: 21mm

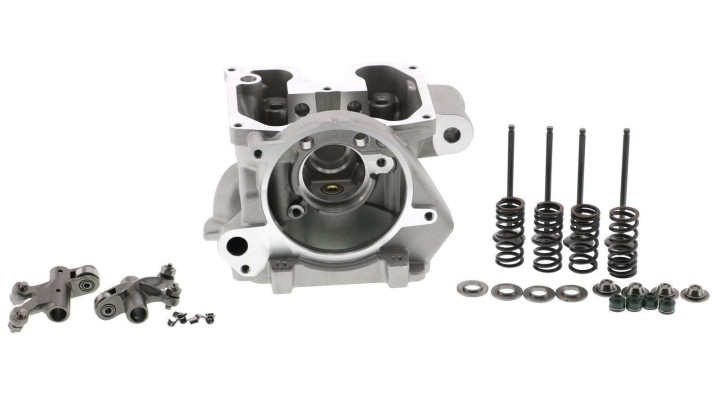

Scope of delivery

Cylinder head
Inlet & exhaust valves
Rocker arm
Valve springs, valve stem seals, valve plates and blocking stones

Yamaha:	MT 125, Bj. 14-16 Typ: RE11, MT 125, Bj. 17-19 Typ: RE29, WR 125, YZF-R 125, Bj. 08-13 Typ: RE06, YZF-R 125, Bj. 14-16 Typ: RE11, YZF-R 125, Bj. 17-18 Typ: RE29, YZF-R 125, Bj. 19- Typ: RE39
Fantic Motor:	Caballero 125 Bj. 18-, Enduro / Motard 125 Bj. 17-
HM :	Moto 125
Rieju:	RS3 125
Beta:	RR 125 Bj. 13-16 (ZD3E4000)
