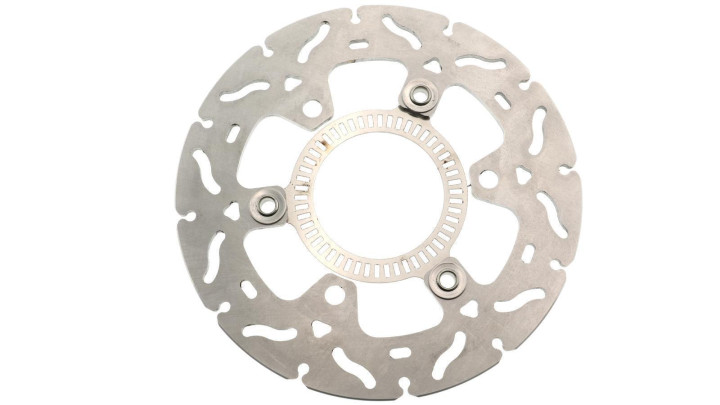

Brake disc TRW Racing Kawasaki Ninja / Z 125, rear

All brake discs from TRW have an ABE. The discs are low-wear and have up to 30% longer service life compared to comparable discs. TRW brake discs consist of extremely dimensionally stable and hardened steel. The precise surface grinding (thickness deviation of 2/100mm) avoids vibrations and improves the adjustment of the pads. An even temperature build-up and reduction enables a constant pressure point. A new special alloy prevents excessive corrosion. Laser technology enables a lightweight construction with fine contours.

Technical data

• Outside diameter:  220 mm
• Inner diameter:  100.3 mm
• bolt circle:  120 mm
• Number of drillings:  3
• Hole diameter:  10.7 mm
• thickness:  5 mm
• execution:  rigid
