Manufacturer: KOSO
Order number: BA041000
2001036900003

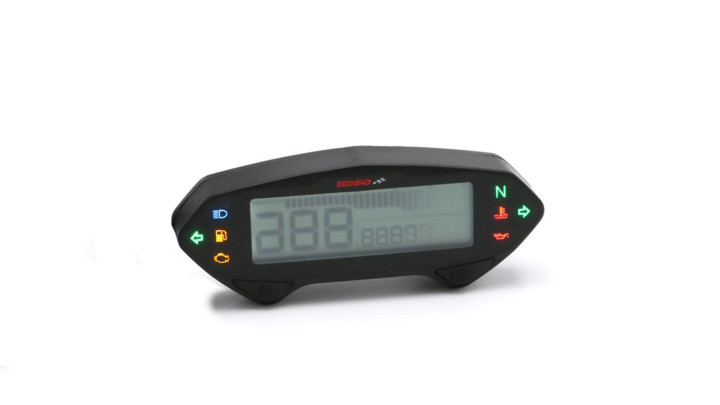

Speedometer Koso DB01RN Universal, with tachometer

Article out of stock. Expected to be in stock on 13.02.2026

€124.95 *

Prices incl. VAT plus shipping costs

Seen cheaper?

Low price guarantee ( Seen cheaper? )

Manufacturer: KOSO
Order number: BA041000

With this measuring device we have developed our very successful DB-01R and DB-01R +. The modern shape and the bright display allows you to read all information perfectly. It looks nicer, it looks sharper, it looks more modern and it shows you all the information you already know from DB-01R or DB-01R +, plus many additional extras. It is perfect for off-road use and has a great fit for all types of motorcycles and ATV's. It is simple and slim, designed as a bar speedometer with E-Mark homologation! The DB01RN is the newest and most advanced member of the DB series. With this speedometer dirt becomes even more sporty and promises unbridled fun!

Speedometer	Display range: 0-360 km/h (0-225 MPH)
Odometer	Display range: 00000.0 - 99999.9 km (mile) Reset automatically after 99999.9 km (mile)
Trip meter A/B	Display range: 000.0 - 999.9 km (mile) Reset automatically after 999.9 km (mile)
Top speed recording	Display range: 30 - 360 km/h (19-225 MPH)
Tyre circumference adjustment	Tyre circumference adjustment Sensor points: 1-20
Speed setting	Adjustment range: 0.5, 1, 2,...-25
Recording Average speed	Recording range: 0-360 km/h (0-225 MPH)
Rev counter	Display range: 0-15000 rpm Unit: 10 rpm
Speed band adjustment	Display range: 0-10000 rpm / 0-12000 rpm / 0-15000 rpm
Switch flash	adjustment range: 1000 - 20000 rpm
Dimensions	120 x 20 x 50 mm (WxDxH)
Fill level indicator	Setting range: 100 Ohm, 250 Ohm, 270 Ohm, 510 Ohm, 1200 Ohm, User
Level indicator in Level	Setting range: 10-level display Warning settings: if the fuel level is below the setting value, the symbol starts flashing
Low level warning setting range	between 10 - 50%, if the fuel level is below the setting value, the symbol starts to flash
Backlighting	white, 5-way dimmable
Operating timer total	Display range: 0.0 - 99999.9h Unit: 0.1h
Operating timer A/B	Display range: 0.0 - 9999.9h Unit: 0.1h
Clock (format)	Setting range: 12h / 24h
Clock	Setting range: 0:00 - 23:59 (24h) / 1:00 - 12:59 (AM/PM) (12h)
Voltmeter	Setting range: DC 8.0V - 16.0V
Setting oil change intervals	Unit: Metric and Imperial Display range: adjustable between 8000 - -900km Counts down automatically with increasing mileage. From 0 km the light flashes and the unit counts down to -999 km.
Standard	JIS
